AMK TRX4M Portal Axles Extended 20mm, 109.6g CNC Aluminum TRX4M Front & Rear Axle Set with Two Servo Mounts for 1/18 RC CrawlerCar TRX4M Axle Upgrade Parts

Features:Aluminum alloy CNC,anodizedDiamond Differential Cover,Full of texturePortal axles, providing sufficient ground clearanceEquipped with 2 different servo mounts+10mm axles increase the width of each side by 10mm, increase total length by 20 mmThe entire axles have been extended, not just the dogbone shafts, which prevents the dogbone shafts from being overburdenedCome with Hardened CVD shafts, 12/24T axle gears, 12/22T portal gears, brass wheel hexes and nuts.Specifications:Front and rear axles/setsColor: BlackMaterial: Aluminum alloy(Axle Housing), Stainless steel (CVD shafts, servo rod),Carbon steel (output shaft/gear),brass (wheel Hex), plastic (ball head)Axle Gears: 24T/12TUnderdrive Portal Gears: 12T/22TAxle gear ratio: 3.67:1Output shaft: 3mmSteering angle: about 45 °Connector specification: 7mm,thickness(4mm)Net weight: about 109.6gTotal Length: 132.5mmPackaging box size: 140 * 60 * 50mmNote:Not compatible with stock TRX4M chassis as the lay lown servo mount is wider than stock.Not compatible with original TRX4M size dogbone shafts as the axle housings are 10mm extended per side.Compatible with both and stock TRX4M upgrade parts: axle gearsNot compatible with stock TRX4M chaissis as the lay lown servo mount is wider than stock,Compatible with chassis available in stores

• TRX4M Portal Axles Construction: The TRX4M axles are made from aluminum alloy, CNC-machined and anodized. These TRX4M axles feature portal axles that provide ample ground clearance to enhance off-road capability
• TRX4M Portal Axles Gears: 24T/12T, Underdrive Portal Gears: 12T/22T, Axle gear ratio: 3.67:1, Output shaft: 3mm；Steering angle: about 45 °, Connector specification: 7mm,thickness(4mm), Net weight: about 109.6g, Total Length: 132.5mm

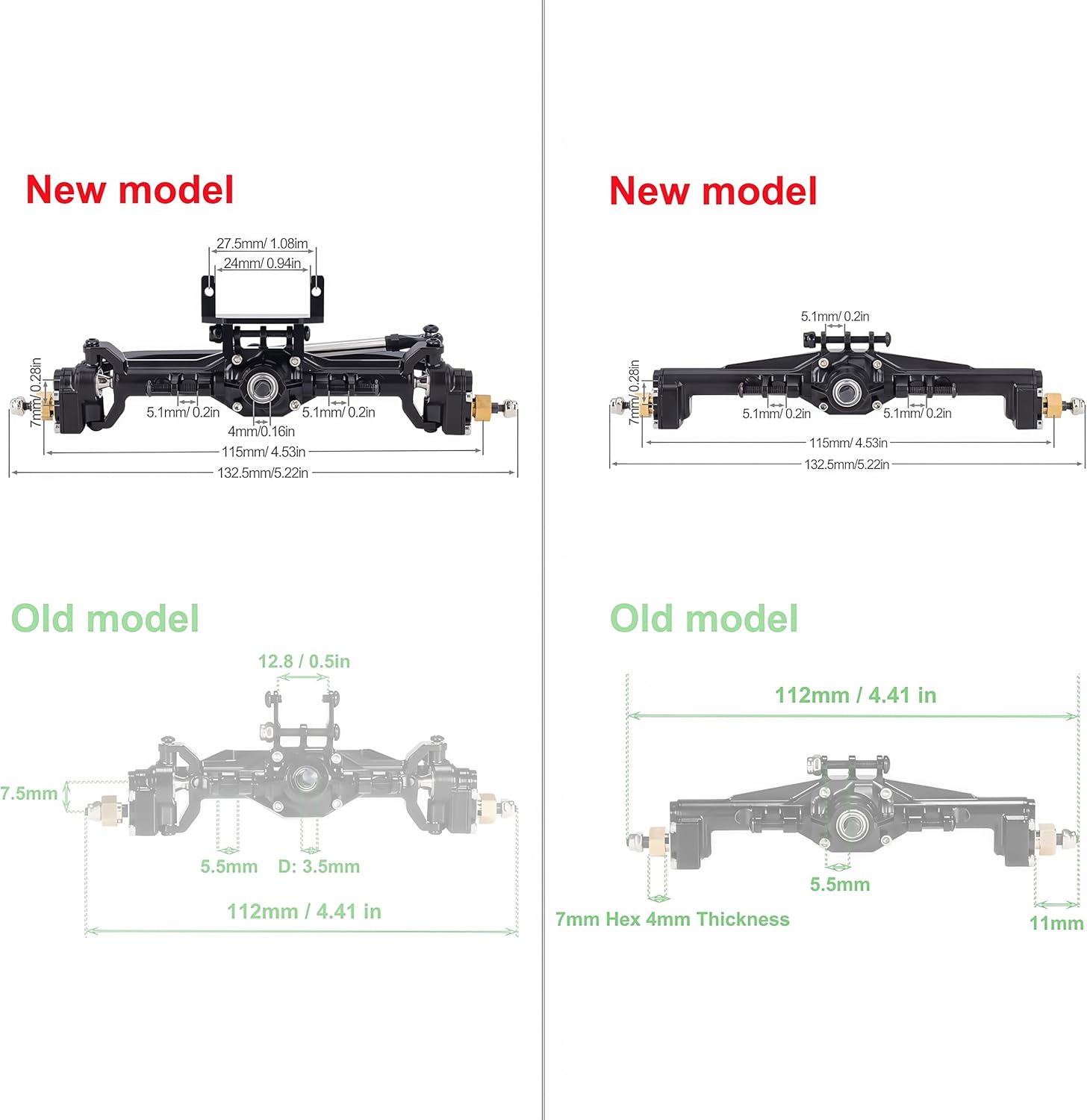

• Extended +10mm Portal Axles: The TRX4M axles have been extended by +10mm on each side, increasing the total width by 20 mm. The full axle extension ensures the axles won’t be overloaded

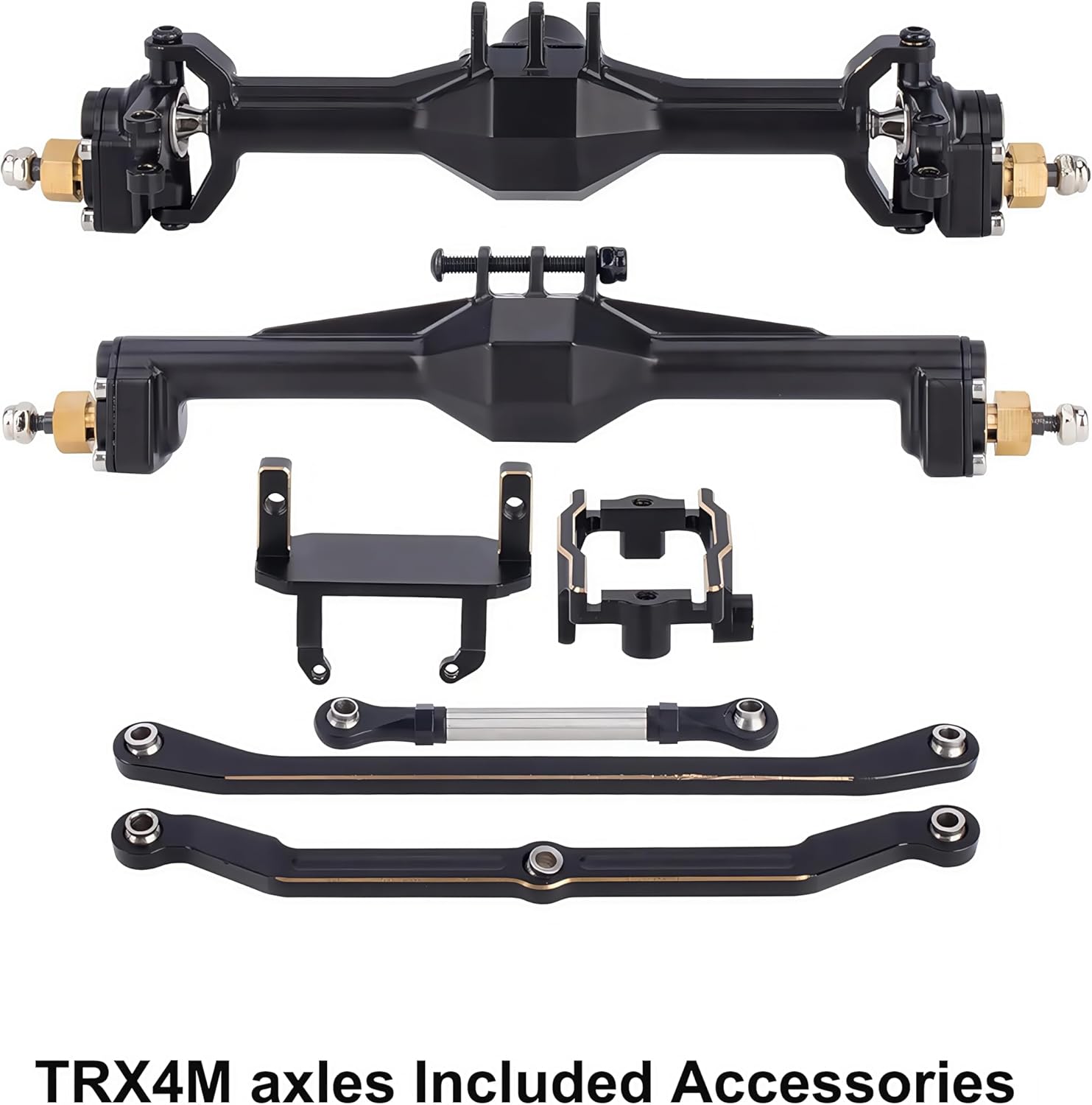

• TRX4M Portal Axle: Comes equipped with two different servo mounts for added versatility. The TRX4M axles also feature hardened CVD shafts, contributing to greater strength and steering precision
• Compatibility Notice:Not compatible with stock TRX4M chassis due to wider laydown servo mount design. Also incompatible with original TRX4M dogbone shafts because of the 10mm per side axle housing extension. Compatible with TRX4M axle gears and many aftermarket chassis available in the market.
