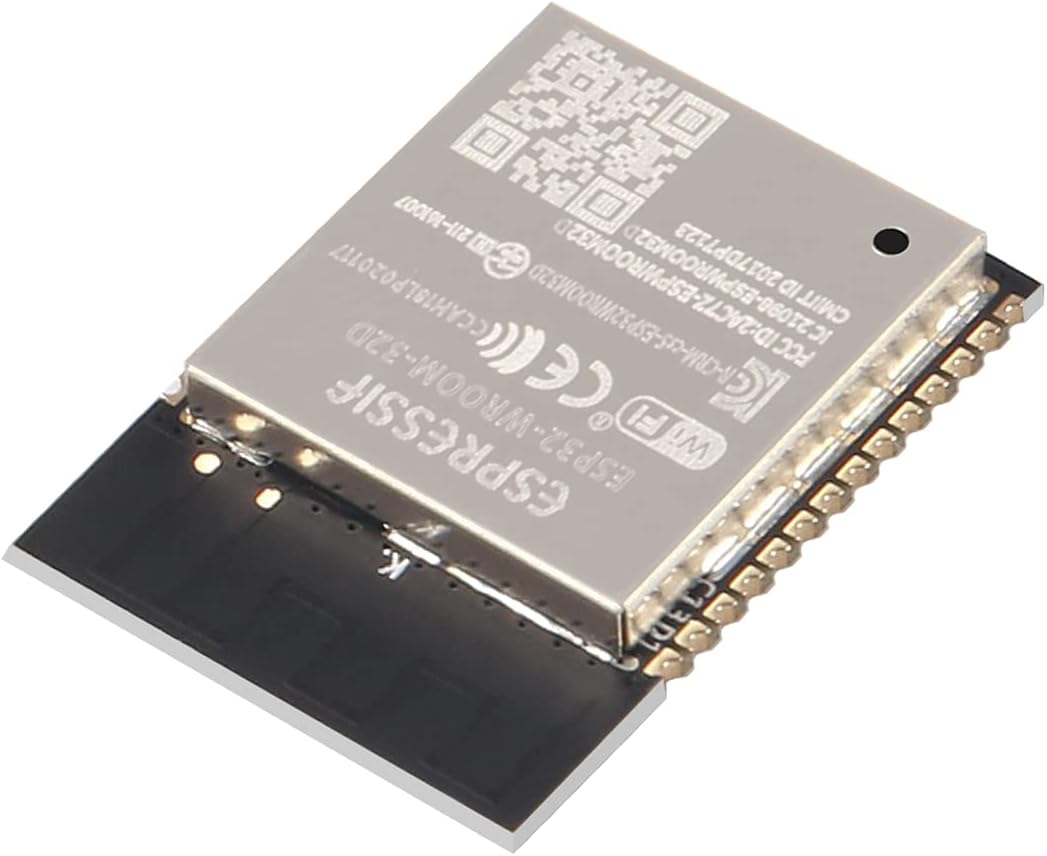

DORHEA 10PCS ESP-WROOM-32D ESP32 Bluetooth and WiFi Low Power Module integrates ESP32-D0WD Generic Wi-Fi+BT+BLE MCU Modules for Voice Encoding Music Streaming and MP3 Decoding
4.6 (125 items)
Limited Time SaleUS$17.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 217004162 | Release Date | 2026/04/19 | List Price | US$12.00 | Model Number | 217004162 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

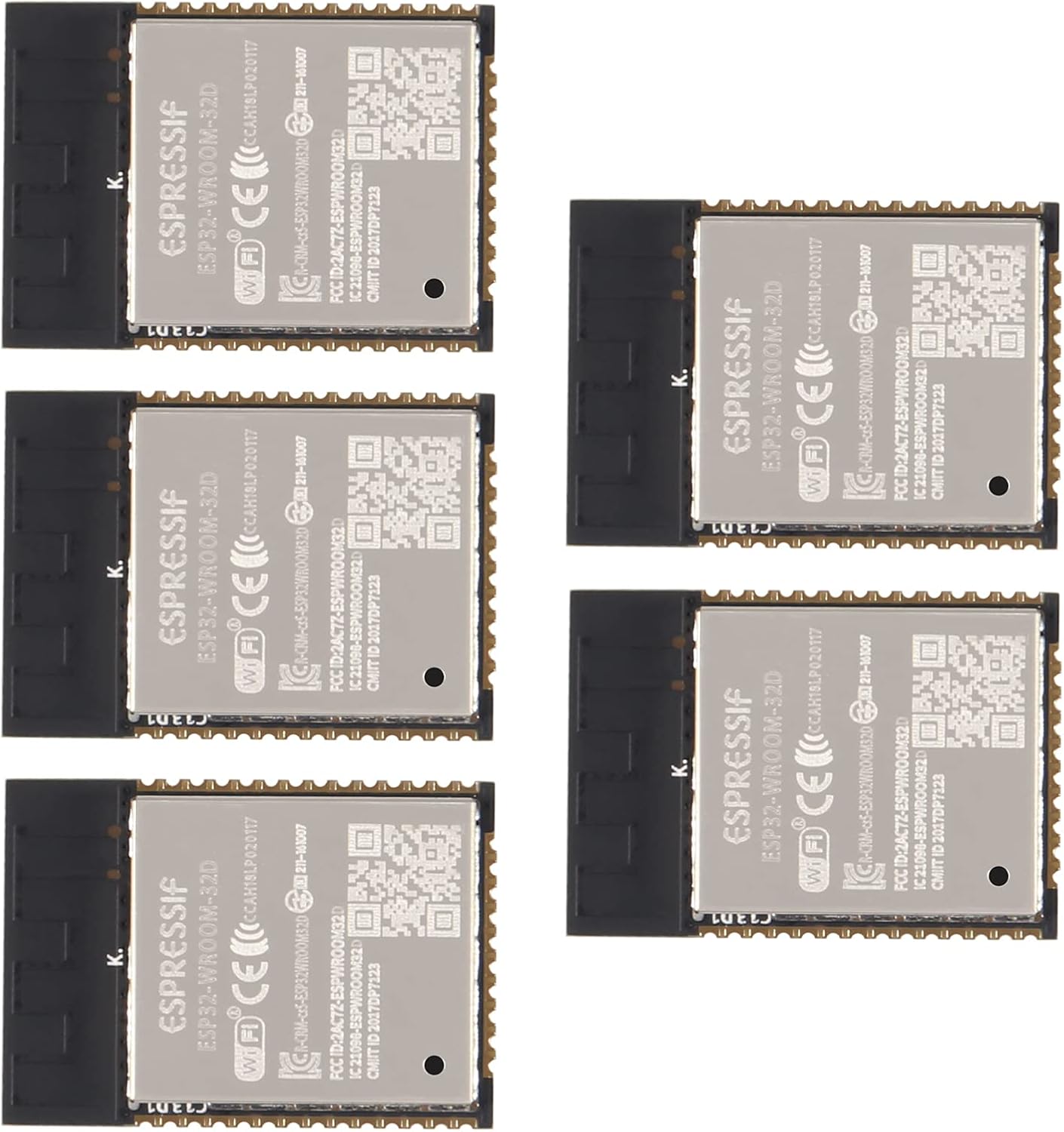

Protocols:802.11 b/g/n (802.11n up to 150 Mbps) Frequency range:2.4 GHz ~ 2.5 GHz Integrated crysta: 40 MHz crysta Integrated SPI flash:4 MB Operating voltage/Power supply :3.0 V ~ 3.6 V Operating current: Average: 80 mA Minimum current delivered by power supply: 500 mA Recommended operating temperature range: 40 °C ~ +85 °C When external flash is mapped into CPU instruction memory space, up to 11 MB + 248 KB can be mapped at a time. Note that if more than 3 MB + 248 KB are mapped, cache performance will be reduced due to speculative reads by the CPU. When external flash is mapped into read-only data memory space, up to 4 MB can be mapped at a time. 8-bit, 16-bit and 32-bit reads are supported. External SRAM can be mapped into CPU data memory space. Up to 4 MB can be mapped at a time. 8-bit, 16-bit and 32-bit reads and writes are supported. ESP32-WROOM-32D integrate a 4 MB of external SPI flash. The integrated SPI flash is connected to GPIO6, GPIO7, GPIO8, GPIO9, GPIO10 and GPIO11. These six pins cannot be used as regular GPIOs. The module uses a 40-MHz crystal oscillator. Package include: 10 X ESP32-WROOM-32D module
- ESP32-WROOM-32D, Core: ESP32-D0WD ; SPI flash: 32 Mbits, 3.3 V; Crysta: 40 MHz; Antenna: onboard antenna.
- ESP32-WROOM-32D are powerful, generic Wi-Fi+BT+BLE MCU modules that target a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming and MP3 decoding.
- The sleep current of the ESP32 chip is less than 5 µA, making it suitable for battery powered and wearable electronics applications.

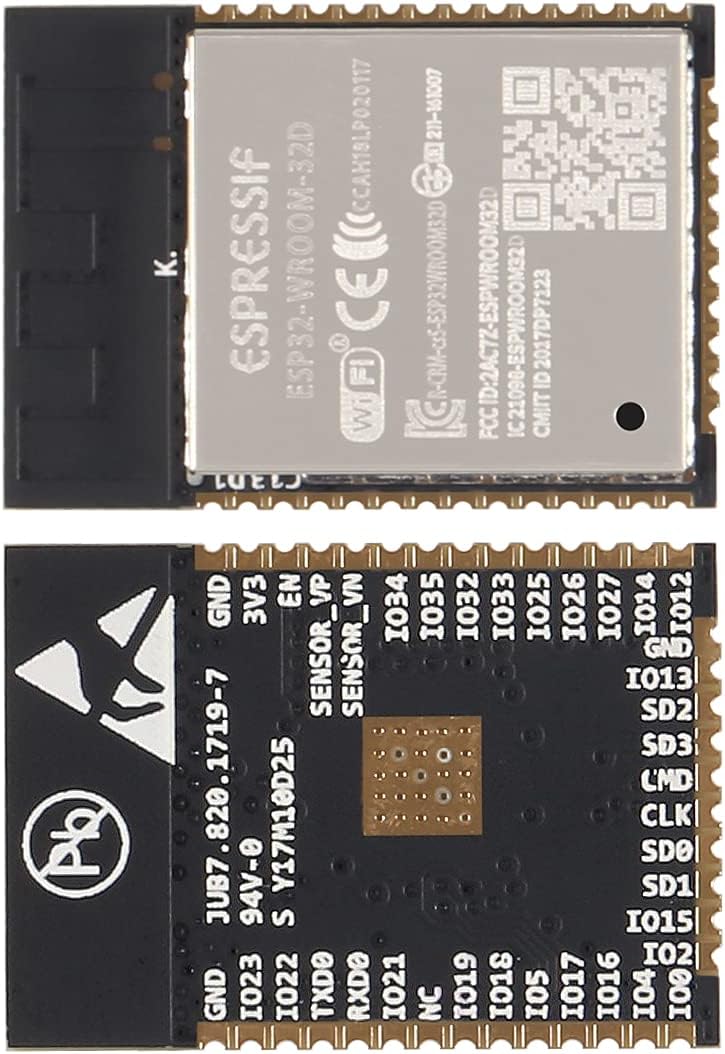

- ESP32-WROOM-32D integrate a 4 MB of external SPI flash. The integrated SPI flash is connected to GPIO6, GPIO7, GPIO8, GPIO9, GPIO10 and GPIO11. These six pins cannot be used as regular GPIOs.
- Flash integrated on the module and are not recommended for other uses.
| UPC | 701715505612 |
|---|---|
| Brand | DORHEA |
| Model Name | ESP-WROOM-32D |
| Manufacturer | DORHEA |
| BuiltIn Media | 10 X ESP32-WROOM-32D modules |
| Mfr Part Number | 12995-1 |
| Processor Count | 2 |
| Operating System | FreeRTOS |
| Compatible Devices | Speakers, Microphones, Computers, Smartphones |
| RAM Memory Installed | 4 MB |
| Wireless Compability | 802.11b, 802.11n, Bluetooth |
| RAM Memory Technology | SRAM |
| Connectivity Technology | Wi-Fi |
| Memory Storage Capacity | 4 MB |
