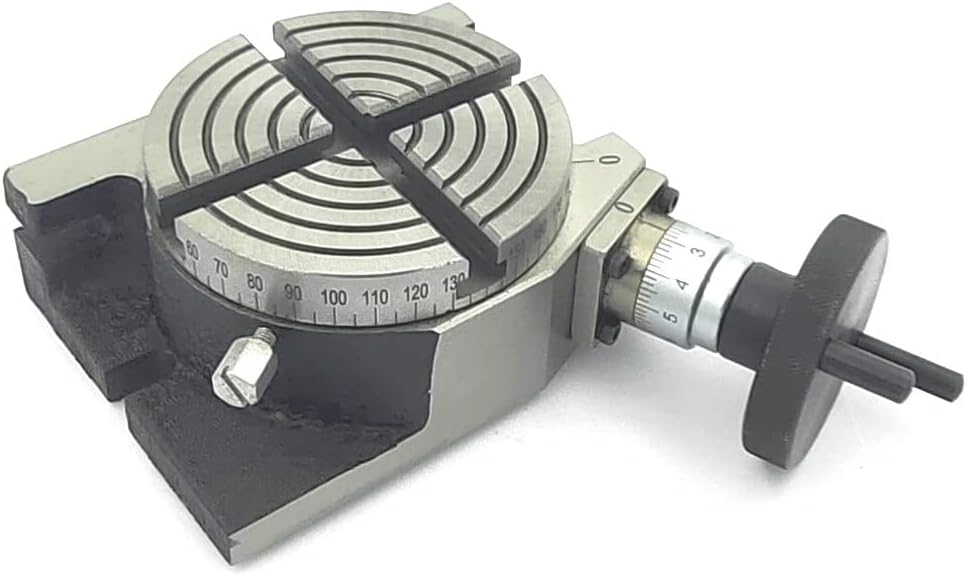

Rotary Table (4"/100 mm Regular, ER 20 Collet Adaptor with M6 Clamp Kit)

Made of Caste Iron, Precision High Quality 4" /100 mm Regular Rotary Table designed for smaller milling machines. Table is graduated 360 Degrees. Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees. Can be clamped vertically and horizontally both ways. Height when laid horizontally 2-5/16" Inches ( 58 mm ) without the Adapter & 108 mm (with ER20 ) collet adapter mounted on it . Center Height in vertical position: 2-1/8" (53.5 mm approx) .Hand wheel is graduated in divisions of 10 min & can be set to zero. Base Dimensions : 135 mm x 105 mm with 2 x U slots (9.5 mm) . Body is painted and Rest all working surfaces are precision ground. The Dial and locking screws are plated and Handle has epoxy black finish for a rust free life. Smooth Jerk free easy rotation with negligible play. The top of the table is ground to eliminate any excess run out. Supplied with 1 Pc each of ER20 collet adaptor with fixing t nuts/ bolts along with a suitable M6 Clamp kit , which is hardened and black for rust free life. It is mainly used to cut gear teeth accurately and equal spacing of the teeth of the gear. Also used for milling gears, splines, squares, cutting of flutes in reamers, drills and milling cutters, racks, grinders, etc. We also offer various accessories like Chucks, Back plates, Clamp kits, Collet Adaptors and Tailstock to suit these rotary table functioning. Pls check our other listings if you need anything from this category.

• Made of Caste Iron, Precision High Quality 4" /100 mm Regular Rotary Table designed for smaller milling machines. Table is graduated 360 Degrees. Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees. Can be clamped vertically and horizontally both ways.
• Height when laid horizontally 2-5/16" Inches ( 58 mm ) without the Adapter & 108 mm (with ER20 ) collet adapter mounted on it . Center Height in vertical position: 2-1/8" (53.5 mm approx) .Hand wheel is graduated in divisions of 10 min & can be set to zero.
• Base Dimensions : 135 mm x 105 mm with 2 x U slots (9.5 mm) . Body is painted and Rest all working surfaces are precision ground. The Dial and locking screws are plated and Handle has epoxy black finish for a rust free life. Smooth Jerk free easy rotation with negligible play. The top of the table is ground to eliminate any excess run out. Supplied with 1 Pc each of ER20 collet adaptor with fixing t nuts/ bolts along with a suitable M6 Clamp kit , which is hardened and black for rust free life.
• It is mainly used to cut gear teeth accurately and equal spacing of the teeth of the gear. Also used for milling gears, splines, squares, cutting of flutes in reamers, drills and milling cutters, racks, grinders, etc.
• We also offer various accessories like Chucks, Back plates, Clamp kits, Collet Adaptors and Tailstock to suit these rotary table functioning. Pls check our other listings if you need anything from this category.
